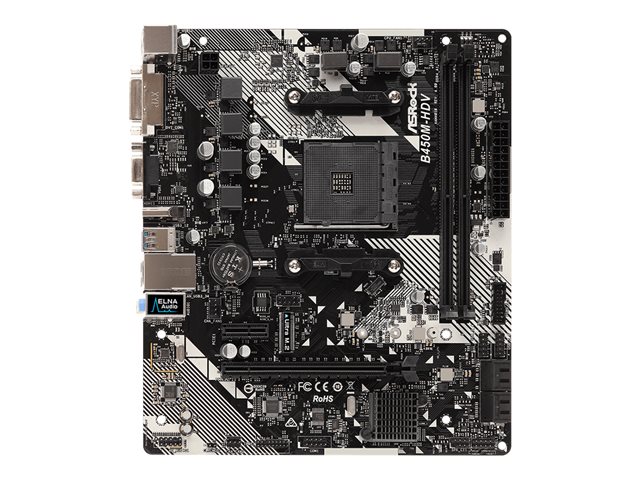

ASROCK B450M-HDV R4.0 AM4 Socket

Šifra artikla: B450M-HDV R4.0

GOTOVINA: 52,95€

NA RATE: 56,66€

Ispiši proizvod

Specifikacije

General
Product Type:	Motherboard – micro ATX
Chipset Type:	AMD B450
Processor Socket:	Socket AM4
Max Processors Qty:	1
Compatible Processors:	Ryzen (Maximum TDP 105 Watt)
Supported RAM
Max Size:	32 GB
Technology:	DDR4
Bus Clock:	2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz (O.C.)
Supported RAM Integrity Check:	Non-ECC, ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture
Graphics
Max Allocated RAM Size:	2 GB
Audio
Type:	HD Audio (8-channel)
Audio Codec:	Realtek ALC887
Compliant Standards:	High Definition Audio
LAN
Network Controller:	Realtek RTL8111H
Network Interfaces:	Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:	1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) 1 x PCIe 2.0 x1
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2
Interfaces:	1 x PS/2 keyboard / mouse 1 x LAN (Gigabit Ethernet) 1 x VGA 1 x DVI-D 1 x HDMI 2 x USB 2.0 4 x USB 3.1 Gen 1 1 x audio line-in – mini-jack 1 x audio line-out – mini-jack 1 x microphone – mini-jack
Internal Interfaces:	4 x USB 2.0 – header 2 x USB 3.1 Gen 1 – header 1 x serial – header 1 x audio – header
Power Connectors:	4-pin ATX12V connector, 24-pin main power connector
Features
BIOS Type:	AMI
BIOS Features:	Multilingual BIOS, JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
Hardware Monitoring:	CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up:	Wake on LAN (WOL)
Hardware Features:	ASRock Instant Flash, All-Solid Capacitor motherboard Design, HDCP compliant, 15µ Gold Contact, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, AMD StoreMI technology
Miscellaneous
Included Accessories:	I/O back plate, 1 x M.2 screw
Cables Included:	2 x Serial ATA cable
Software Included:	Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Compliant Standards:	FCC, EuP Ready, ErP Ready
Width:	23 cm
Depth:	20.1 cm
