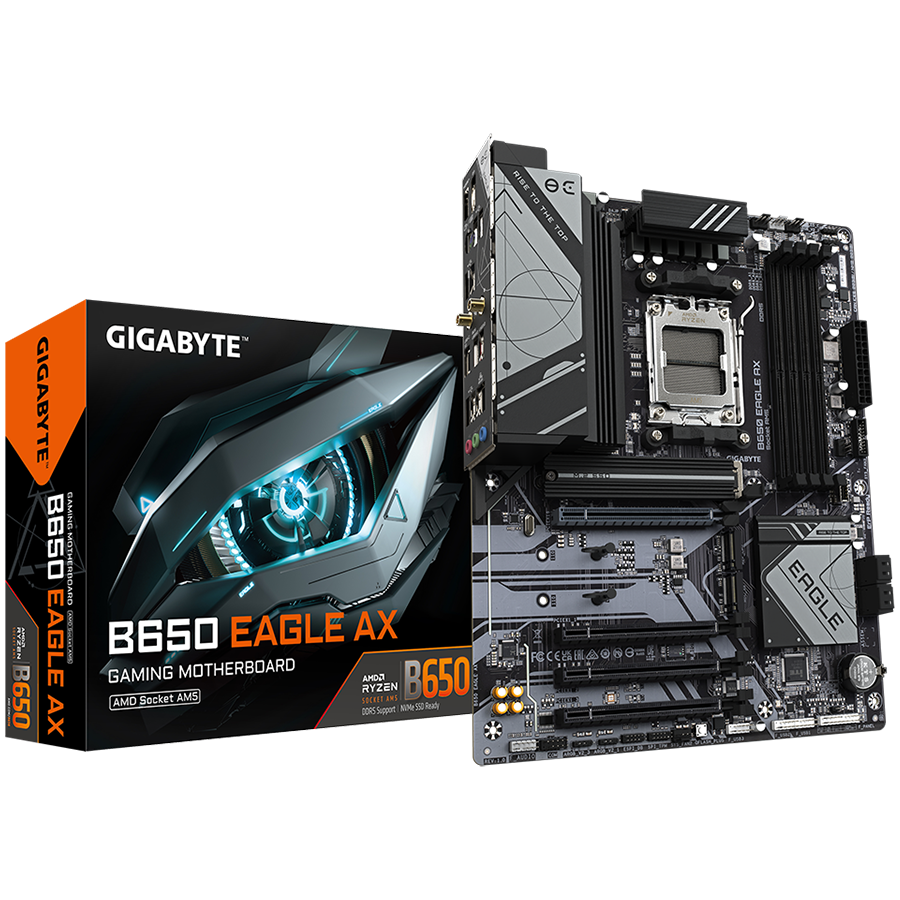

GIGABYTE MB B650 EAGLE AX (AM5

Šifra artikla: B650 EAGLE AX

GOTOVINA: 158,96€

NA RATE: 170,09€

Ispiši proizvod

Specifikacije

Chipset	AMD B650
Supports Central Processor Unit	AMD Ryzen 7000 Series AMD Ryzen 8000 Series
CPU podnožje	Socket AM5
CPU Maximum Quantity Supports	1
Vrsta memorije	DDR5 SDRAM
Memory Form Factor	DIMM 288-pin
Memory Speed	7600MHz
Maximum Installable System Memory Storage Capacity	192 GB
Memory Slot Total Quantity	4
Provides Error Checking Method	non-ECC
Memory Features	Unbuffered Dual Rank Single Rank XMP AMD EXPO
Plug-in-card	Wi-Fi Controller: 1 x M.2 (Key E)
Integrated	Storage Controller: Supports: Level 0, Level 1, Level 10 PCI Express 5.0 x4 (2 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10 PCI Express 4.0 x2 (2 x M.2 (Key M))
Integratedintegrated	Storage ControllerStorage Controller: Supports: Level 0, Level 0, Level 1, Level 1, Level 10, Level 10 SATA III-600SATA III-600 (4)
Audio Integrated	yes
Device Location	Integrated
Audio Output Mode	7.1 Channel Surround
Compliant Audio Standards	High Definition Audio
LAN Integrated	yes
Wi-Fi	IEEE 802.11ax Wi-Fi 6E
Bluetooth	Bluetooth 5.3
Data Link Protocol Supports	Gigabit Ethernet/Fast Ethernet/Ethernet
PCI Express x16	4
PS/2	1
USB 3.2 Gen 1	1 (USB 3.2 (type C))
USB 2.0	6 (USB 2.0 (type A))
USB 3.2 Gen 2	2 (USB 3.2 (type A))
HDMI	1 (HDMI (Type A))
DisplayPort	1
LAN	1 (RJ-45)
Audio Interface	3 (3.5-mm minijack)
Antenna	2
BIOS Type	AMI
BIOS Features	Gigabyte Q-Flash WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM
Hardware Monitoring	CPU Temperature CPU Voltage System Temperature System Voltage
Mainboard Features	Fan Speed Control
Supported Operating System	Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
Form Factor	ATX
Height (mm)	244 mm
Width (mm)	305 mm
Warranty Products Returnable	Yes
Warranty Term (month)	36 month(s)
Warranty validation Criteria	Serial Number
Pack Weight Brutto (kg)	1.969 kg
Pack Weight Netto (kg)	1.5 kg
Pieces in pack	1
Box Weight Brutto (kg)	2 kg
Retail Packaging Net Weight Carton	0.3 kg
Retail Packaging Net Weight Plastic	0.2 kg
Packs in Box	1
Package Type	Retail
EAN Code	4719331860158
