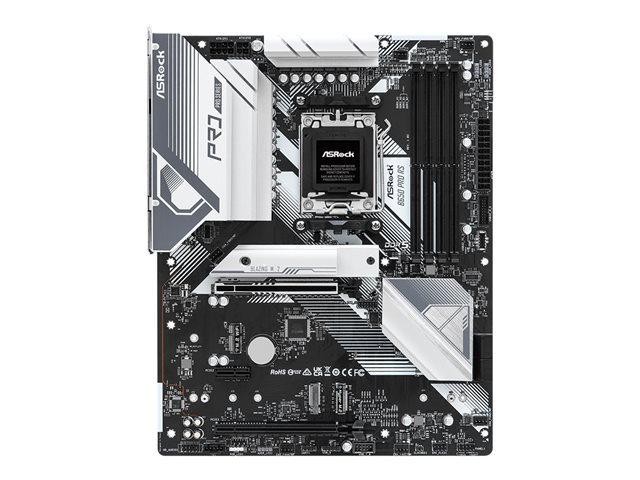

ASROCK B650 PRO RS ATX MB AM5

Šifra artikla: B650 PRO RS

GOTOVINA: 156,46€

NA RATE: 167,41€

Ispiši proizvod

Specifikacije

General
Product Type:	Motherboard – ATX
Chipset Type:	AMD B650
Processor Socket:	Socket AM5
Max Processors Qty:	1
Compatible Processors:	Ryzen (supports Ryzen 7000 Series)
Supported RAM
Max Size:	128 GB
Technology:	DDR5
Bus Clock:	6400 MHz (O.C.)
Supported RAM Integrity Check:	Non-ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
Audio
Type:	HD Audio (8-channel)
Audio Codec:	Realtek ALC897
Compliant Standards:	High Definition Audio
LAN
Network Controller:	Dragon RTL8125BG
Network Interfaces:	2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:	1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 4.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 1 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces:	SATA-600 -connectors: 2 x 7pin Serial ATA – RAID 0 / RAID 1 ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA – RAID 0 / RAID 1 PCIe 5.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 / RAID 10
Interfaces:	1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 1 6 x USB 2.0 1 x HDMI 1 x DisplayPort 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in – mini-jack 1 x audio line-out – mini-jack 1 x microphone – mini-jack
Internal Interfaces:	1 x USB-C 3.2 Gen 2×2 – header 2 x USB 3.2 Gen 1 – header 3 x USB 2.0 – header 1 x SPI – header 1 x audio – header 1 x Thunderbolt – header 1 x speaker – header
Power Connectors:	24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
Features
BIOS Type:	AMI
BIOS Features:	UEFI BIOS
Hardware Features:	ASRock POST Status Checker (PSC), 15µ Gold Contact, Water Pump Header, 8 Layer PCB, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, 14+2+1 Phase Power Design, 60A Smart Power Stage, Enlarged Heatsink Armor, pre-mounted I/O shield, ASRock Steel Slots, M.2 heatsink, BIOS FlashBack button
Miscellaneous
Included Accessories:	3 x M.2 screws
Cables Included:	2 x Serial ATA cable
Software Included:	ASRock A-Tuning, ASRock Dragon 2.5G LAN Software
Compliant Standards:	FCC, ErP Ready, EuP Ready, DisplayPort 1.4, HDCP 2.3
Width:	30.5 cm
Depth:	24.4 cm
