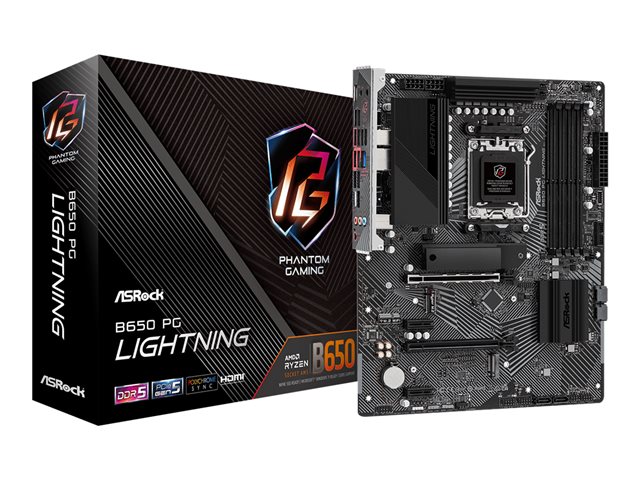

ASROCK B650 PG LIGHTNING ATX MB AM5

Šifra artikla: B650 PG LIGHTNING

GOTOVINA: 160,02€

NA RATE: 171,22€

Ispiši proizvod

Specifikacije

General
Product Type:	Motherboard – ATX
Chipset Type:	AMD B650
Processor Socket:	Socket AM5
Max Processors Qty:	1
Compatible Processors:	Ryzen (supports Ryzen 7000 Series)
Supported RAM
Max Size:	128 GB
Technology:	DDR5
Bus Clock:	6400 MHz (O.C.)
Supported RAM Integrity Check:	Non-ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
Audio
Type:	HD Audio (8-channel)
Audio Codec:	Realtek ALC897
Compliant Standards:	High Definition Audio
LAN
Network Controller:	Dragon RTL8125BG
Network Interfaces:	2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:	1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x2 mode) 2 x PCIe 4.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 3 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 – RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 – RAID 0 / RAID 1 / RAID 10
Interfaces:	1 x USB-C 3.2 Gen2x2 7 x USB 3.2 Gen 1 1 x LAN (2.5Gigabit Ethernet) 4 x USB 2.0 1 x HDMI 1 x audio line-in – mini-jack 1 x microphone – mini-jack 1 x audio line-out (front surround) – mini-jack
Internal Interfaces:	1 x USB-C 3.2 Gen 2 – header 2 x USB 3.2 Gen 1 – header 4 x USB 2.0 – header 1 x SPI – header 1 x audio – header 1 x speaker – header
Power Connectors:	24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type:	AMI
BIOS Features:	UEFI BIOS
Hardware Features:	14+2+1 Phase Power Design, 60A Smart Power Stage, pre-mounted I/O shield, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), 8 Layer PCB, Water Pump Header, ASRock Full HD UEFI, ASRock Instant Flash, 15µ Gold Contact, ASRock Lightning Gaming Ports
Miscellaneous
Included Accessories:	3 x M.2 screws
Cables Included:	2 x Serial ATA cable
Software Included:	ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software
Compliant Standards:	FCC, ErP Ready, EuP Ready, HDCP 2.3
Width:	30.5 cm
Depth:	24.4 cm
